WINEFICATOR WINEMATIC

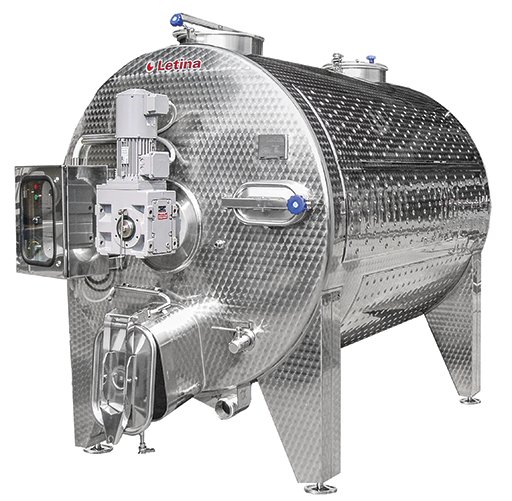

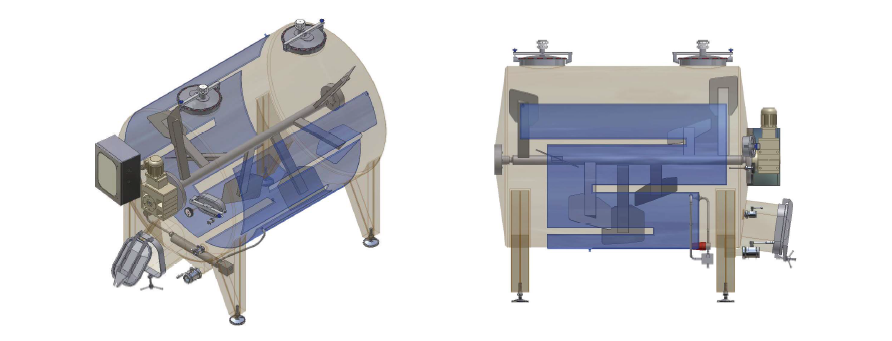

WINEFICATOR WINEMATIC is horizontal construction of a tank for maceration of red and fermentation of white grapes. Speed control, mixing time interval and time-out, discharge and other functions are electronically controlled. Specially constructed mixing system ensures a slight but efficient mixing and also an automatic discharge of the tank. Geared motor ensures a slight mixing with adjustable speed of 0 to 5 turns per minute in both directions.
Basic equipment:
- manhole cover ø400 mm, 2 pcs
- vent valve DN50, PVC, 2 pcs
- closed legs, adjustable
- type plate with note card
- ladder support
- thermometer, analog
- sample tap, DN15
- manway door, rectangular, type 165
- manway door, rectangular, type Z175
- el. heater under the bottom
- heating pump
- automatic cooling, heating and mixing
- control
- el. box with touchscreen
- thermowell with PG9 fitting
- cooling jacket, 1.0 m2/1000 lit
- solenoid valve
- ball valve DN32 DIN11851, partial discharge
- ball valve DN65 DIN11851, total discharge
- brushed welds
Additional equipment:
- manhole covers other dimensions
- evel indicator, ø16 mm, acrylic tube,
- scaled, open
- level tube ø24 mm
- valves (ball/ butterfly), Clamp, Garolla, WG, Macon, Gas, etc.
- mesh screen
- inert gas fitting
- caps on valves and fittings
- insulation 60 mm, PUR
- brushed and polished welds, Ra<0.8 µm

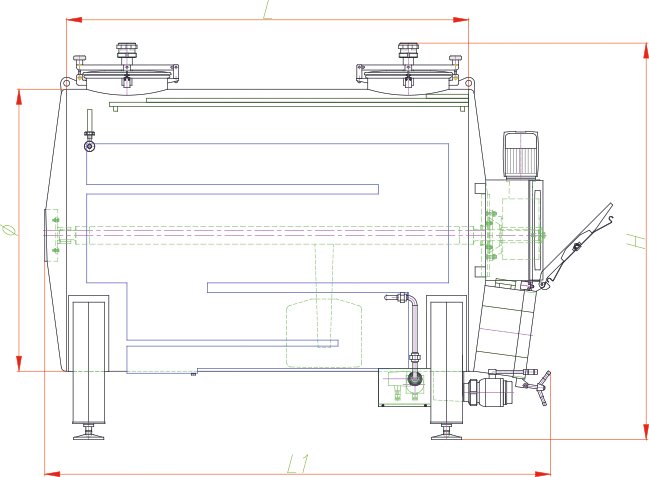

All sizes are in millimeters!
TANK TYPE | VOLUME | Ø | L1 | L | H |
---|---|---|---|---|---|
VIN3200A14 | 3200 lit | 1403 | 2621 | 2000 | 2000 |
VIN4000A14 | 4000 lit | 1403 | 3121 | 2500 | 2000 |
VIN4100A16 | 4100 lit | 1594 | 2635 | 2000 | 2300 |
VIN5100A16 | 5100 lit | 1594 | 3135 | 2500 | 2300 |
VIN5000A18 | 5000 lit | 1753 | 2646 | 2000 | 2450 |
VIN6200A18 | 6200 lit | 1753 | 3146 | 2500 | 2450 |
VIN7400A18 | 7400 lit | 1753 | 3646 | 3000 | 2450 |
VIN7500A19 | 7500 lit | 1912 | 3157 | 2500 | 2700 |
VIN8900A19 | 8900 lit | 1912 | 3657 | 3000 | 2700 |
VIN10500A21 | 10500 lit | 2072 | 3680 | 3000 | 2800 |
VIN13800A21 | 13800 lit | 2072 | 4680 | 4000 | 2800 |
VIN12200A22 | 12200 lit | 2231 | 3680 | 3000 | 3000 |
VIN16100A22 | 16100 lit | 2231 | 4680 | 4000 | 3000 |
VIN15400A25 | 15400 lit | 2502 | 3699 | 3000 | 3300 |
VIN20300A25 | 20300 lit | 2502 | 4699 | 4000 | 3300 |
